A material is a naturally or artificially produced substance that is to be further processed into semi-finished or finished products. The right material can be chosen based on the properties needed for your application. Important properties include hardness, elasticity, durability and cost.
Additional feature
with black PE foam
A material’s properties can be logically represented in the form of technical data. A unique combination of material and raw material quality can result in distinctive properties. This unique characteristic therefore ensures the greatest distinction between different materials.
Color
black
Most of our product range comes in black, grey or white. We can also supply materials in other colours, such as red, yellow, green or blue. Please bear in mind that there is always some tolerance with respect to colour. The degree of tolerance varies between materials and is greater in some than in others.
Cell structure
closed cell
The cell structure indicates whether a material is open, semi-closed or closed. In materials with a closed cell structure, all cells are closed and the air cannot escape the cells. Materials with a closed cell structure can generally only be compressed by a certain percentage before the cells burst and the material disintegrates. By contrast, the air in materials with an open cell structure can enter and leave the cells. For this reason, open-celled materials can usually be completely compressed. Semi-closed materials fall between these two types. If the material is not compressed, air can circulate through it to a limited extent. But once the material is compressed by a certain percentage, the cells close and the material becomes closed in structure.
Adhesive type
acrylate
Density
100 kg/m³
A material’s compactness or density expresses the mass of that material present in a given volume. For most of our products, this is expressed in kg/m³. The manufacture of any given material always allows for tolerance on density. This cannot be avoided, unfortunately, but it is accurately tracked in quality controls. We measure the density or specific gravity of materials in accordance with international standards. This enables materials to be more effectively and accurately compared.
Density range and norm
90 to 110 kg/m³ (DIN EN ISO 845)
Backing
white silicone backing
Possibilities Material
Self adhesive possibilities
2 sides
The self-adhesive options depend on the properties, shape and intended application of the material. We can supply most materials unglued (without a self-adhesive side), with one self-adhesive side, and with two self-adhesive sides. However, some materials cannot have glue applied to them, and there are some profiles that we can only supply with one self-adhesive side.
Most sold thicknesses
0,8 mm
While the most commonly sold thicknesses provide an initial indication of the standard options available, there are many more possibilities. If the thickness you are looking for is not listed, please contact us. We can often can easily customise the thickness, and there may also be an alternative material that comes in the desired thickness.
Max width of rolls
645 mm
We produce strips and shapes from rolls of material. The standard roll width indicates the possibilities with respect to maximum dimensions.
UV resistance
mediocre
Ozone resistance
good
Sealing for which joint types
level/parallel
flat = smooth surface like metal/uneven = irregular surface like masonry/parallel = a joint that is very constant/gradient = a joint that varies a lot in thickness. Smooth and flat joints are not a problem, but irregular and gradient joints can be challenging. When it comes to masonry, for example, any unevenness should be properly accommodated but still provide a good seal. For gradient joints, the material should be very compressible, but still provide an effective seal in the areas where the tape is much less compressed.
Technical Properties Material
Temperature range
-40 °C to +120 °C, intermittent +125 °C
FMVSS302
compliant
The Federal Motor Vehicle Safety Standard (FMVSS) 302 is an international test that measures the flammability of a material. This standard specifies the burning behaviour exhibited by a material. If a material is compliant, this means that a certain minimum level of safety is guaranteed.
Application temperature
> 10 °C
Adhesive strength after 1 hour
> 20N/25mm (FTM 1)
Peel at 23 °C
> 25N/25mm (AFERA 4001)
Peel at 70 °C
> 12N/25mm (AFERA 4001)
Shear 1 kg - 25x25mm
> 1000 uur (FTM 8)
Shear at 23 °C
> 80N (AFERA 4012)
Shear at 70 °C
> 20N (AFERA 4012)
Water absorption
<1% (DIN 53428)
Compression set: 25%, 22 h, 23 °C: after 30 min
< 30% (DIN EN ISO 1856)
Compression set: 25%, 22h, 23 °C: after 24h
< 20% (DIN EN ISO 1856)
Elongation
350% (> 300%, DIN EN ISO 1798)
The elongation is a measure of the material’s elasticity, and relates to its tensile strength. It indicates the percentage by which the material is elongated when the specified force of tensile strength is used. The elongation is expressed as a percentage of the original length: 120% means that the material can be stretched by 20% of its original size before it breaks.
Maximum % of compression
50%
This indicates the maximum percentage by which a material can be compressed without breaking the material. For example, if closed-cell foam is compressed by more than 50%, the cells burst. The maximum compression percentage for harder materials is much lower. Very soft materials with an open cell structure can often be almost completely compressed.
Applications, Standards
REACH
compliant
REACH is a European regulation that deals with which chemical substances should not be included in materials. The main idea behind it is the improved protection of human and environmental health from the risks of chemicals. This list of substances is regularly modified and expanded, and EKI monitors this on an ongoing basis.
RoHS
compliant
The RoHS (Restriction of Hazardous Substances) directive is concerned with limiting the use of hazardous substances in electrical and electronic equipment. This standard is therefore mainly used in the electrical industry and is regularly updated. EKI monitors this on an ongoing basis.
Recyclable
compliant
We are already recycling residual waste from our production process as much as possible. In most cases, this means grinding the rubber or foam into small pellets that are then reused as the basis for new products. If customers return residual waste, EKI includes it in this recycling process.
CFC and HCFC free
compliant
In short, the material is ozone-friendly. We get this question regularly at EKI, especially from sealant companies. Although the question is more applicable to some materials than to others, we have extended this notion throughout our entire range.
Shelf life
1 year
The amount of time a material may remain in stock after it has come in, before being used. This is based on an assumption of normal indoor conditions, and that the material is still in its original packaging. Our guideline is a temperature of 20°C and relative humidity of 40% to 50%.
General Description

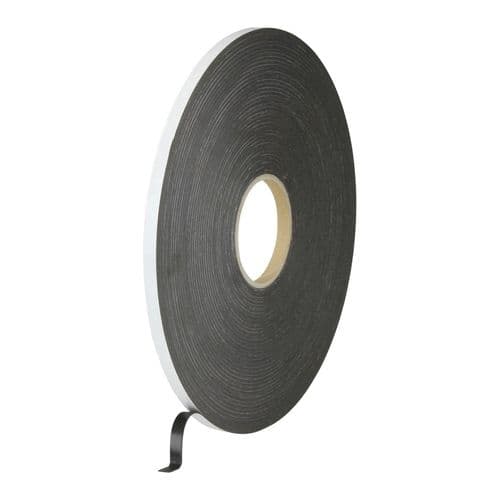

Material type
double-sided foam tape
A material is a naturally or artificially produced substance that is to be further processed into semi-finished or finished products. The right material can be chosen based on the properties needed for your application. Important properties include hardness, elasticity, durability and cost.
Additional feature
with black PE foam
A material’s properties can be logically represented in the form of technical data. A unique combination of material and raw material quality can result in distinctive properties. This unique characteristic therefore ensures the greatest distinction between different materials.
Color
black
Most of our product range comes in black, grey or white. We can also supply materials in other colours, such as red, yellow, green or blue. Please bear in mind that there is always some tolerance with respect to colour. The degree of tolerance varies between materials and is greater in some than in others.
Cell structure
closed cell
The cell structure indicates whether a material is open, semi-closed or closed. In materials with a closed cell structure, all cells are closed and the air cannot escape the cells. Materials with a closed cell structure can generally only be compressed by a certain percentage before the cells burst and the material disintegrates. By contrast, the air in materials with an open cell structure can enter and leave the cells. For this reason, open-celled materials can usually be completely compressed. Semi-closed materials fall between these two types. If the material is not compressed, air can circulate through it to a limited extent. But once the material is compressed by a certain percentage, the cells close and the material becomes closed in structure.
Adhesive type
acrylate
Density
100 kg/m³
A material’s compactness or density expresses the mass of that material present in a given volume. For most of our products, this is expressed in kg/m³. The manufacture of any given material always allows for tolerance on density. This cannot be avoided, unfortunately, but it is accurately tracked in quality controls. We measure the density or specific gravity of materials in accordance with international standards. This enables materials to be more effectively and accurately compared.
Density range and norm
90 to 110 kg/m³ (DIN EN ISO 845)
Backing
white silicone backing
Possibilities Material
Self adhesive possibilities
2 sides
The self-adhesive options depend on the properties, shape and intended application of the material. We can supply most materials unglued (without a self-adhesive side), with one self-adhesive side, and with two self-adhesive sides. However, some materials cannot have glue applied to them, and there are some profiles that we can only supply with one self-adhesive side.
Most sold thicknesses
0,8 mm
While the most commonly sold thicknesses provide an initial indication of the standard options available, there are many more possibilities. If the thickness you are looking for is not listed, please contact us. We can often can easily customise the thickness, and there may also be an alternative material that comes in the desired thickness.
Max width of rolls
645 mm
We produce strips and shapes from rolls of material. The standard roll width indicates the possibilities with respect to maximum dimensions.
UV resistance
mediocre
Ozone resistance
good
Sealing for which joint types
level/parallel
flat = smooth surface like metal/uneven = irregular surface like masonry/parallel = a joint that is very constant/gradient = a joint that varies a lot in thickness. Smooth and flat joints are not a problem, but irregular and gradient joints can be challenging. When it comes to masonry, for example, any unevenness should be properly accommodated but still provide a good seal. For gradient joints, the material should be very compressible, but still provide an effective seal in the areas where the tape is much less compressed.
Technical Properties Material
Temperature range
-40 °C to +120 °C, intermittent +125 °C
FMVSS302
compliant
The Federal Motor Vehicle Safety Standard (FMVSS) 302 is an international test that measures the flammability of a material. This standard specifies the burning behaviour exhibited by a material. If a material is compliant, this means that a certain minimum level of safety is guaranteed.
Application temperature
> 10 °C
Adhesive strength after 1 hour
> 20N/25mm (FTM 1)
Peel at 23 °C
> 25N/25mm (AFERA 4001)
Peel at 70 °C
> 12N/25mm (AFERA 4001)
Shear 1 kg - 25x25mm
> 1000 uur (FTM 8)
Shear at 23 °C
> 80N (AFERA 4012)
Shear at 70 °C
> 20N (AFERA 4012)
Water absorption
<1% (DIN 53428)
Compression set: 25%, 22 h, 23 °C: after 30 min
< 30% (DIN EN ISO 1856)
Compression set: 25%, 22h, 23 °C: after 24h
< 20% (DIN EN ISO 1856)
Elongation
350% (> 300%, DIN EN ISO 1798)
The elongation is a measure of the material’s elasticity, and relates to its tensile strength. It indicates the percentage by which the material is elongated when the specified force of tensile strength is used. The elongation is expressed as a percentage of the original length: 120% means that the material can be stretched by 20% of its original size before it breaks.
Maximum % of compression
50%
This indicates the maximum percentage by which a material can be compressed without breaking the material. For example, if closed-cell foam is compressed by more than 50%, the cells burst. The maximum compression percentage for harder materials is much lower. Very soft materials with an open cell structure can often be almost completely compressed.
Applications, Standards
REACH
compliant
REACH is a European regulation that deals with which chemical substances should not be included in materials. The main idea behind it is the improved protection of human and environmental health from the risks of chemicals. This list of substances is regularly modified and expanded, and EKI monitors this on an ongoing basis.
RoHS
compliant
The RoHS (Restriction of Hazardous Substances) directive is concerned with limiting the use of hazardous substances in electrical and electronic equipment. This standard is therefore mainly used in the electrical industry and is regularly updated. EKI monitors this on an ongoing basis.
Recyclable
compliant
We are already recycling residual waste from our production process as much as possible. In most cases, this means grinding the rubber or foam into small pellets that are then reused as the basis for new products. If customers return residual waste, EKI includes it in this recycling process.
CFC and HCFC free
compliant
In short, the material is ozone-friendly. We get this question regularly at EKI, especially from sealant companies. Although the question is more applicable to some materials than to others, we have extended this notion throughout our entire range.
Shelf life
1 year
The amount of time a material may remain in stock after it has come in, before being used. This is based on an assumption of normal indoor conditions, and that the material is still in its original packaging. Our guideline is a temperature of 20°C and relative humidity of 40% to 50%.
Disclaimers
The published technical data is based on research data and serves as a guide for the various applications. Due to the great diversity of products and application possibilities, the buyer must test himself whether the intended material meets the requirements. All information is subject to typing errors, mistakes and market developments and no rights can be derived from this.
